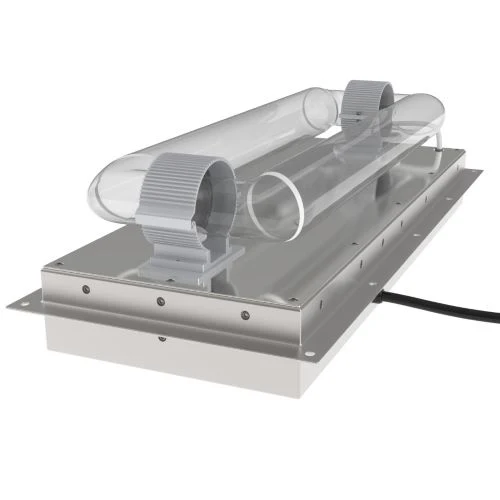

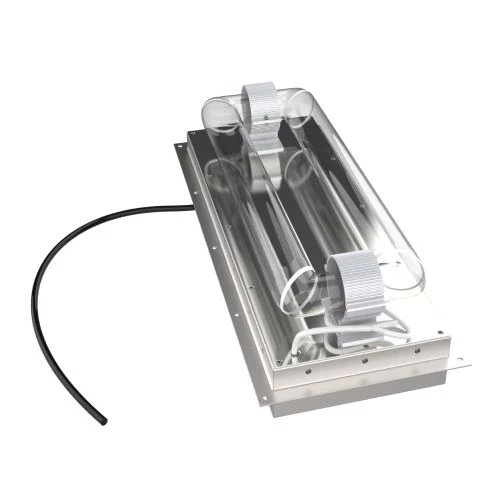

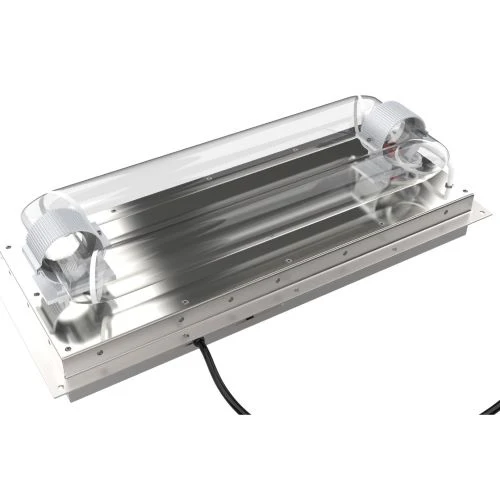

Blade Air UV-C Induct 300W

Designed to fit seamlessly within a new or existing HVAC system to sanitize the air as it flows through any size facilities. The 300 Watt UV bulb equipped on the Induct will turn on when airflow is detected. The Blade Air UV-C Induct 300W produces no ozone, and bulbs have a 43,800 hour lifespan.

Scientifically proven and third-party tested to deactivate and destroy 99.9% of airborne viruses, bacteria, and mold. Offers complete facility protection based on new or existing HVAC designs vs. stand-alone units that are designed to protect specific spaces. Achieved UL 2998 certification and are safe for operation in environments that are sensitive to the production of harmful ozone. Featuring a five-year lamp life of continuous use with absolutely zero maintenance, minimizing ongoing facilities costs.

Science of UV-C

Not all UV-C is created equal

Air Sniper is designed to effectively treat all air moving through any HVAC system.

3 Key Components of UV-C Efficacy

Scientifically proven and third-party tested to capture harmful particles, airborne viruses, and bacteria.

1. Dwell Time

Dwell time is the period a contaminant spends within the proper UVC intensity level. Our equipment is designed to provide the dwell time required to kill pathogens

2. Proximity

To ensure effective levels of irradiation, our equipment ensures pathogens are always within close proximity to the UVC bulbs as they pass through the unit into the facility.

3. Intensity

Effectively killing airborne pathogens requires high volumes of UV intensity, which comes from multiple bulbs that create a wall of UVC to irradiate contaminants.

Features

• ROBUST INDUSTRIAL DESIGN: Units can be stacked to address mechanical systems of any size
• REFLECTIVE PANELLING: Highly reflective paneling is used throughout the innerside of the unit to further amplify UV intensity.
• AIRFLOW SENSE DETECTION: The 300 Watt UV bulb equipped on the Induct will turn on when airflow is detected.
• INTENSE 300W UV-C BULB: Industry-leading True HEPA filter removing 99.97% at 0.3 microns in size.
• POWER SOURCE: Pulling pre-filtered air from below and pushing through HEPA filter.

TECHNICAL SPECIFICATIONS

Bulb Type	300 Watts
Running Lifetime	43,800 Hours
Estimated Life Span of Bulb	10+ Years but can vary
Warranty Bulb	3 Years
Labor	1 Year
Smart Technology	BAS Integration (Enable/Disable, Alert, Status)
Ozone	Ozone Free
High Volume	CDC & ASHRAE recommended
Power Requirements	Single Phase, 110V AC 50/60 Hz
Energy Consumption	3.5 Amp Max (420 Watt) @110V AC
Weight	15 lbs
Status Indicator	Status, bulb life, alarm indicators
Housing Material	Aluminum
Electrical Safety Certification	cETLus Certified UL and CSA Standards
Dimensions	25"(H) x 10"(W) x 5.36"(D)
Power Control	On/Off controller by fan power on/off cycle
Operating Temp Range	-25C/+100C
Recommended Airflow	500-1500 CFM



*Can be upgraded to 208V AC 50/60 Hz for extra charge*

WHAT’S IN THE BOX

• 1 - Blade Air UV-C Induct 300W
• 1 - Owner’s Manual
